Kibana

1. Kibana

• UI for visualizing Elasticsearch data.
• Supports:
  • Discover (raw data view)
  • Dashboards
  • Visualizations
  • Alerts & Watchers
  • Reports
  • Role-based access control
• End-users (HR, Finance etc.) get only Kibana access, never Elasticsearch/Logstash access.

1.1 Access Control Example

• HR team sees only HR data.
• Finance team sees only finance data.
• A user belonging to both sees both.
• Managed through roles & user permissions in Kibana.

2. Kibana ↔ Elasticsearch Connection Requirements

To connect Kibana to Elasticsearch, the following are required:

✔ Elasticsearch URL

Example:

http://localhost:9200

✔ Kibana System user

Default inbuilt user → kibana_system

✔ Password for kibana_system

• Needs to be reset manually because Elastic does not give a default password.

---

3. Important Inbuilt Elasticsearch Users

These are created automatically during first installation:

User	Purpose
elastic	Super user (admin)
kibana_system	Used by Kibana to connect to Elasticsearch
logstash_system	Used by Logstash
apm_system	Used by APM server
beats_system	Used by Filebeat, Metricbeat, etc.

⚠ Do NOT share elastic user password with anyone.

---

4. Resetting Passwords

Command (run inside Elasticsearch bin/ folder):

elasticsearch-reset-password -u <username>

Notes

• Elasticsearch must be running before using reset-password.
• Passwords are stored inside path.data, but not visible (only replace by resetting).
• If user does not exist → error (e.g., trying to reset a user you haven’t created).

---

5. Kibana Installation & Configuration

After downloading Kibana:

5.1 Important file

config/kibana.yml

Key settings to configure:

server.port: 5601
server.host: "localhost"

elasticsearch.hosts: ["http://localhost:9200"]
elasticsearch.username: "kibana_system"
elasticsearch.password: "<your_password>"

5.2 SSL Certificate Settings

• Elasticsearch uses certificates for secure communication.
• Certificate file:

  • Located at:

    Elasticsearch/config/cert/http_ca.crt

When certificate is required:

• If Kibana runs on a different machine than Elasticsearch.

When NOT required:

• When both run on same machine (localhost).

To ignore certificate verification:

elasticsearch.ssl.verificationMode: none

---

6. Starting Kibana

Go to Kibana bin folder:

kibana.bat

Notes:

• First launch takes 4–5 minutes.
• Warnings can appear; errors must be fixed.

• Once running → access via:

  http://localhost:5601

---

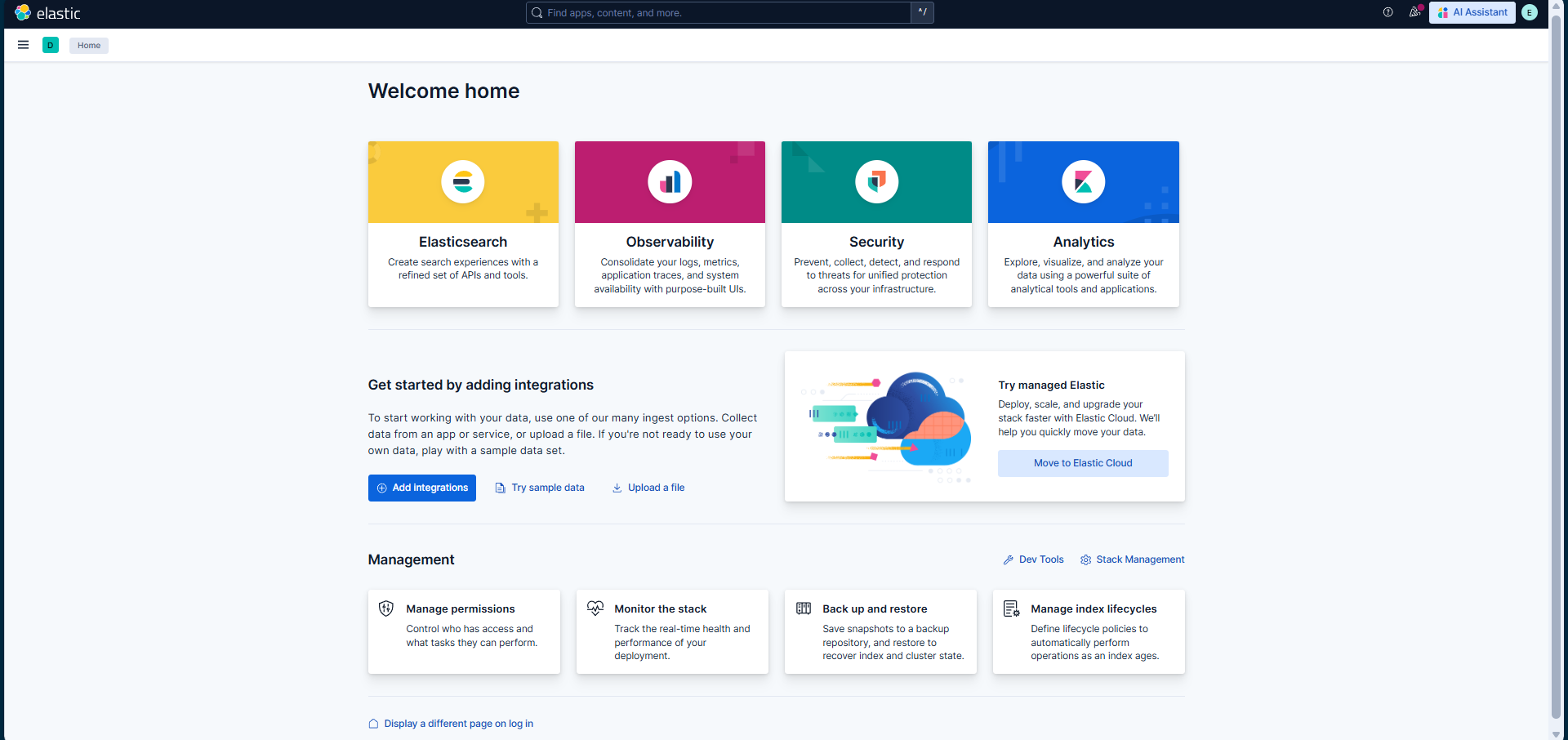

7. Kibana UI Overview

Left Sidebar Tabs:

7.1 Analytics

• Discover → View raw indexed data.
• Dashboard → Grouped visualizations.
• Visualize Library → Create/edit charts.
• Machine Learning → Anomaly detection (requires paid license).

7.2 Observability

• Logs / Metrics / Traces
• View application behavior, performance, error rates.

7.3 Security

• Security events, host events, network monitoring.
• Alerts, rules, cases.

7.4 Dev Tools

• Run Elasticsearch queries (DSL).
• Very useful for debugging.

7.5 Stack Management

Important admin section:

• Users & Roles
• Index Management
• Index Lifecycle Policies (ILM) → retention rules
• Snapshot & Restore → backups
• Ingest Pipelines → basic data processing
• Connectors → email, Slack, Teams alerts
• Stack Monitoring → monitor Elasticsearch/Kibana/Beats health

---

8. User, Role & Password Management

Create user:

1. Stack Management → Users → Create User
2. Provide:
   • Username
   • Password
   • Roles
3. Save

Change password:

• You cannot view existing password.
• You can only change it (enter current + new password).

---

9. Indexing Concepts

Index = Equivalent of “table” in SQL

Document = Equivalent of “row”

Fields = Equivalent of “columns”

ILM (Index Lifecycle Management)

• Controls how long data stays in Elasticsearch.
  • Example: keep logs 7 days → delete after that.

---

10. Integrations

Elasticsearch provides 300+ predefined integrations:

• AWS EC2
• MySQL / Oracle databases
• Beats
• Kubernetes
• Cloud
• Application logs
• Network devices

Helps ingest data easily without writing custom code.

---

11. Production Considerations

Restart Approval Rules

• Kibana/Elasticsearch restarts should only be done:
  • During maintenance window
  • Usually 12 AM – 5 AM weekends
• Required to avoid impacting end-users.

Dev > Test > Prod flow

• Do all config changes in DEV first.
• Verify no errors.
• Follow organization’s Change Request (CR) process before PROD deployment.
